# EIP 1884: 对 trie-size-dependent 操作码调整gas消耗

作者 讨论 类型 分类 状态 创建时间 依赖
Martin Holst Swende (@holiman) 3024 Standards Track Core 草稿 2019-03-28 150, 1052

# 简要说明

This EIP proposes repricing certain opcodes, to obtain a good balance between gas expenditure and resource consumption.

# 摘要

The growth of the Ethereum state has caused certain opcodes to be more resource-intensive at this point than they were previously. This EIP proposes to raise the gasCost for those opcodes.

# 动机

An imbalance between the price of an operation and the resource consumption (CPU time, memory etc) has several drawbacks:

  • It could be used for attacks, by filling blocks with underpriced operations which causes excessive block processing time.
  • Underpriced opcodes cause a skewed block gas limit, where sometimes blocks finish quickly but other blocks with similar gas use finish slowly.

If operations are well-balanced, we can maximise the block gaslimit and have a more stable processing time.

# 规范

At block N,

  • The SLOAD (0x54) operation changes from 200 to 800 gas,
  • The BALANCE (0x31) operation changes from 400 to 700 gas,
  • The EXTCODEHASH (0x3F) operation changes from 400 to 700 gas,
  • A new opcode, SELFBALANCE is introduced at 0x47.
    • SELFBALANCE pops 0 arguments off the stack,
    • SELFBALANCE pushes the balance of the current address to the stack,
    • SELFBALANCE is priced as GasFastStep, at 5 gas.

# 原理阐述

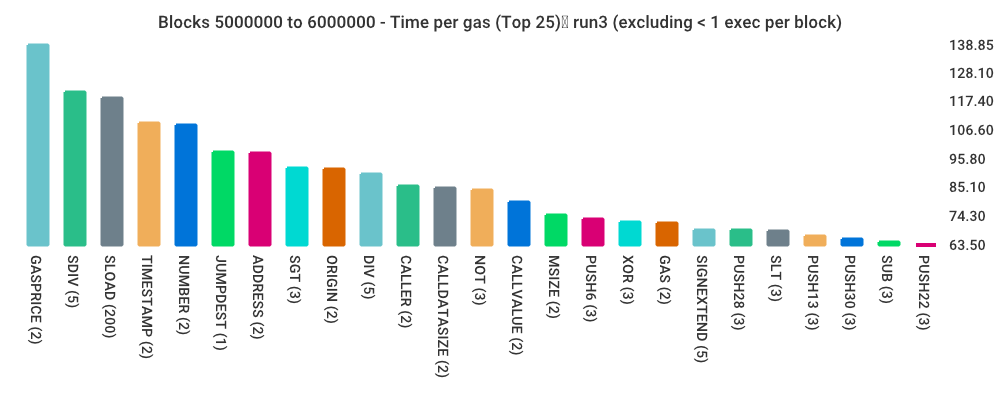

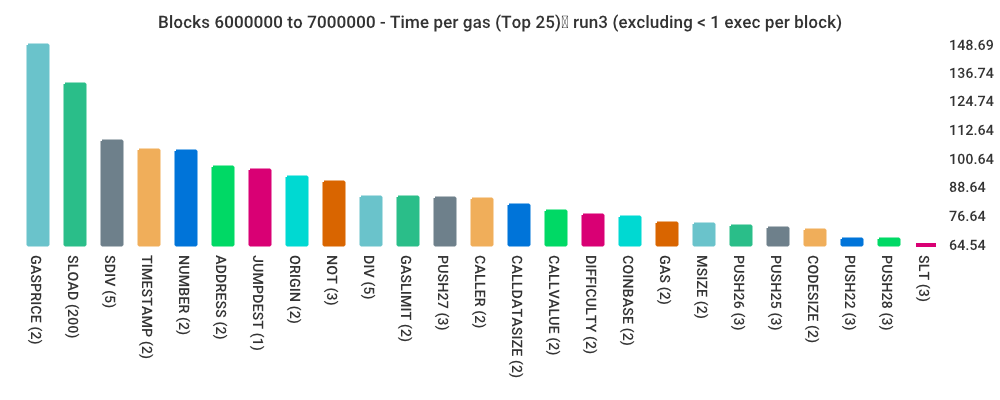

Here are two charts, taken from a full sync using Geth. The execution time was measured for every opcode, and aggregated for 10K blocks. These bar charts show the top 25 'heavy' opcodes in the ranges 5M to 6M and 6M to 7M:

bars1 bars2

Note: It can also be seen that the SLOAD moves towards the top position. The GASPRICE (0x3a) opcode has position one which I believe can be optimized away within the client -- which is not the case with SLOAD/BALANCE.

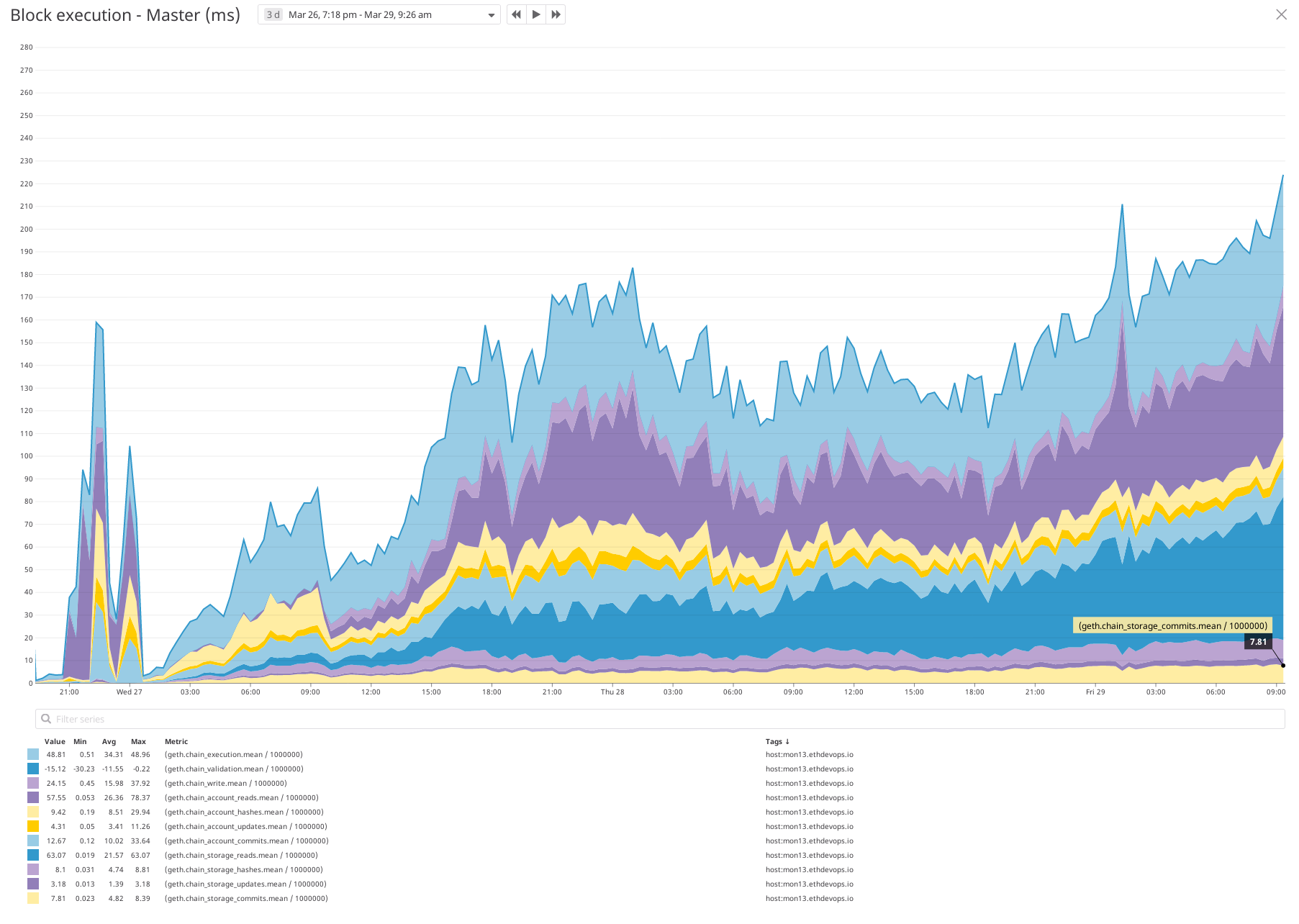

Here is another chart, showing a full sync with Geth. It represents the blocks 0 to 5.7M, and highlights what the block processing time is spent on.

geth

It can be seen that storage_reads and account_reads are the two most significant factors contributing to the block processing time.

# SLOAD

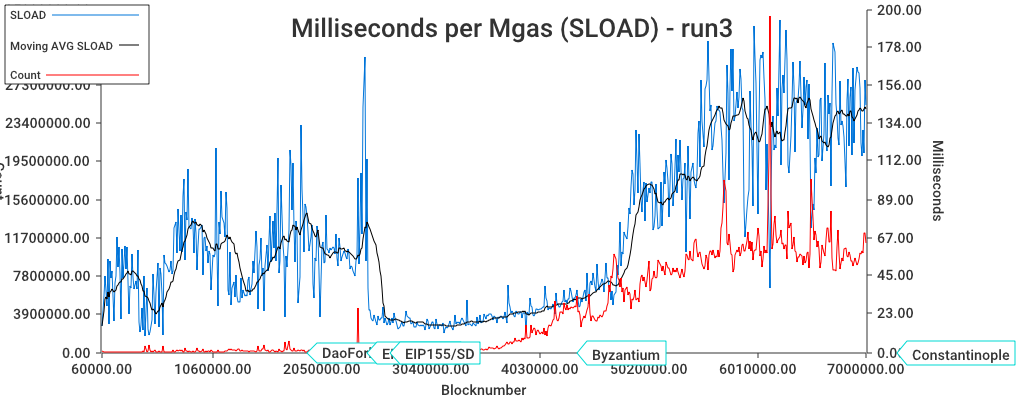

SLOAD was repriced at EIP-150, from 50 to 200. The following graph shows a go-ethereum full sync, where each data point represents 10K blocks. During those 10K blocks, the execution time for the opcode was aggregated.

graph

It can be seen that the repricing at EIP-150 caused a steep drop, from around 67 to 23. Around block 5M, it started reaching pre-EIP-150 levels, and at block 7M it was averaging on around 150 - more than double pre-eip-150 levels.

Increasing the cost of SLOAD by 4 would bring it back down to around 40. It is to be expected that it will rise again in the future, and may need future repricing, unless state clearing efforts are implemented before that happens.

# BALANCE

BALANCE (a.k.a EXTBALANCE) is an operation which fetches data from the state trie. It was repriced at EIP-150 from 20 to 400.

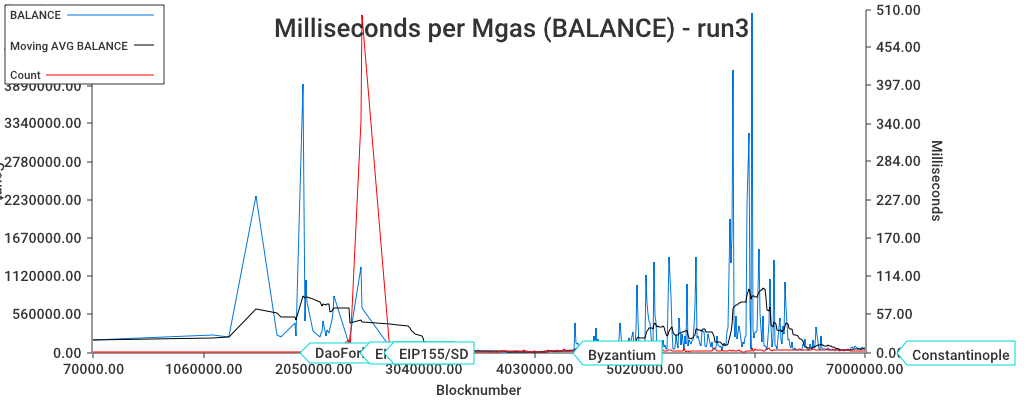

graph

It is comparable to EXTCODESIZE and EXTCODEHASH, which are priced at 700 already.

It has a built-in high variance, since it is often used for checking the balance of this, which is a inherently cheap operation, however, it can be used to lookup the balance of arbitrary account which often require trie (disk) access.

In hindsight, it might have been a better choice to have two opcodes: EXTBALANCE(address) and SELFBALANCE, and have two different prices.

  • This EIP proposes to extend the current opcode set.
    • Unfortunately, the opcode span 0x3X is already full, hence the suggestion to place SELFBALANCE in the 0x4X range.
    • As for why it is priced at 5 (GasFastStep) instead of 2 (GasQuickStep), like other similar operations: the EVM execution engine still needs a lookup into the (cached) trie, and balance, unlike gasPrice or timeStamp, is not constant during the execution, so it has a bit more inherent overhead.

# EXTCODEHASH

EXTCODEHASH was introduced in Constantinople, with EIP-1052. It was priced at 400 with the reasoning:

The gas cost is the same as the gas cost for the BALANCE opcode because the execution of the EXTCODEHASH requires the same account lookup as in BALANCE.

Ergo, if we increase BALANCE, we should also increase EXTCODEHASH

# 向后兼容

The changes require a hardfork. The changes have the following consequences:

  • Certain calls will become more expensive.
  • Default-functions which access the storage and may in some cases require more than2300 gas (the minimum gas that is always available in calls).
  • Contracts that assume a certain fixed gas cost for calls (or internal sections) may cease to function.
    • A fixed gas cost is specified in ERC-165 and implementations of this interface do use the affected opcodes.
      • The ERC-165 method supportsInterface must return a bool and use at most 30,000 gas.
      • The two example implementations from the EIP were, at the time of writing
        1. 586 gas for any input, and
        2. 236 gas, but increases linearly with a higher number of supported interfaces
    • It is unlikely that any ERC-165 supportsInterface implementation will go above 30.000 gas. That would require that the second variant is used, and thirty:ish interfaces are supported.
    • However, these operations have already been repriced earlier, so there is a historical precedent that 'the gascost for these operations may change', which should have prevented such fixed-gas-cost assumptions from being implemented.

I expect that certain patterns will be less used, for example the use of multiple modifiers which SLOADs the same opcode will be merged into one. It may also lead to less log operations containing SLOADed values that are not strictly necessary.

# 测试用例

Testcases that should be implemented:

  • Test that selfbalance == balance(address),
  • Test that balance(this) costs as before,
  • Test that selfbalance does not pop from stack
  • Gascost verification of SLOAD, EXTCODEHASH and SELFBALANCE
  • Verify that SELFBALANCE is invalid before Istanbul

Some testcases have been implemented as statetests at https://github.com/holiman/IstanbulTests/tree/master/GeneralStateTests

# 实现

This EIP has not yet been implemented in any client. Both these opcodes have been repriced before, and the client internals for managing reprices are already in place.

# SELFBALANCE

This is the implementation for the new opcode in go-ethereum:


func opSelfBalance(pc *uint64, interpreter *EVMInterpreter, contract *Contract, memory *Memory, stack *Stack) ([]byte, error) {
	stack.push(interpreter.intPool.get().Set(interpreter.evm.StateDB.GetBalance(contract.Address())
	return nil, nil
}

1
2
3
4
5
6

# Security considerations

  • See backwards compatibility section.
  • There are no special edgecases regarding SELFBALANCE, if we define it as BALANCE with address instead of popping an address from the stack -- since BALANCE is already well-defined.
  • It should be investigated if Solidity contains any hardcoded expectations on the gas cost of these operations.
  • In many cases, a recipient of ether from a CALL will want to issue a LOG. The LOG operation costs 375 plus 375 per topic. If the LOG also wants to do an SLOAD, this change may make some such transfers fail.

# 版权

Copyright and related rights waived via CC0.
