使用 Avail 的 Light Client 构建一个简单的 Next.js 应用

学习区块链概念就像在水下解魔方！ 数据可用性 (DA) 是扩展难题的关键部分，但它通常与诸如 Rollup、欺诈证明和有效性证明等复杂主题混杂在一起。 有时，最好的学习方法是一次专注于一个部分。

在本教程中，我们将做到这一点——单独隔离并探索数据可用性。 可以把它想象成掌握魔方的一个面，然后再去解决整个难题。 虽然在生产环境中，你通常会通过 Rollup 或其他扩展解决方案与 DA 交互，但出于学习目的，我们将稍微打破规则。 我们将构建一个简单的笔记应用程序，该程序可直接与 Avail 的 DA 层对话！

在本教程结束时，你将通过构建一些有形的东西来了解数据可用性的工作原理——一个将消息直接存储在 Avail 的 DA 层的去中心化笔记应用程序。 这就像在深入研究之前，先亲身实践魔方的一个面！

💡 只想获取代码：你可以跳过本教程并在此处运行完整的应用程序 here!

我们要构建什么

我们将分四个主要步骤创建一个去中心化的笔记应用程序：

1. 基本的 Next.js 设置：一个干净、响应式的 UI，用于输入和显示笔记
2. 轻客户端集成：本地 Avail 轻客户端的实时状态监控
3. 消息功能：使用 Avail 轻客户端直接提交消息

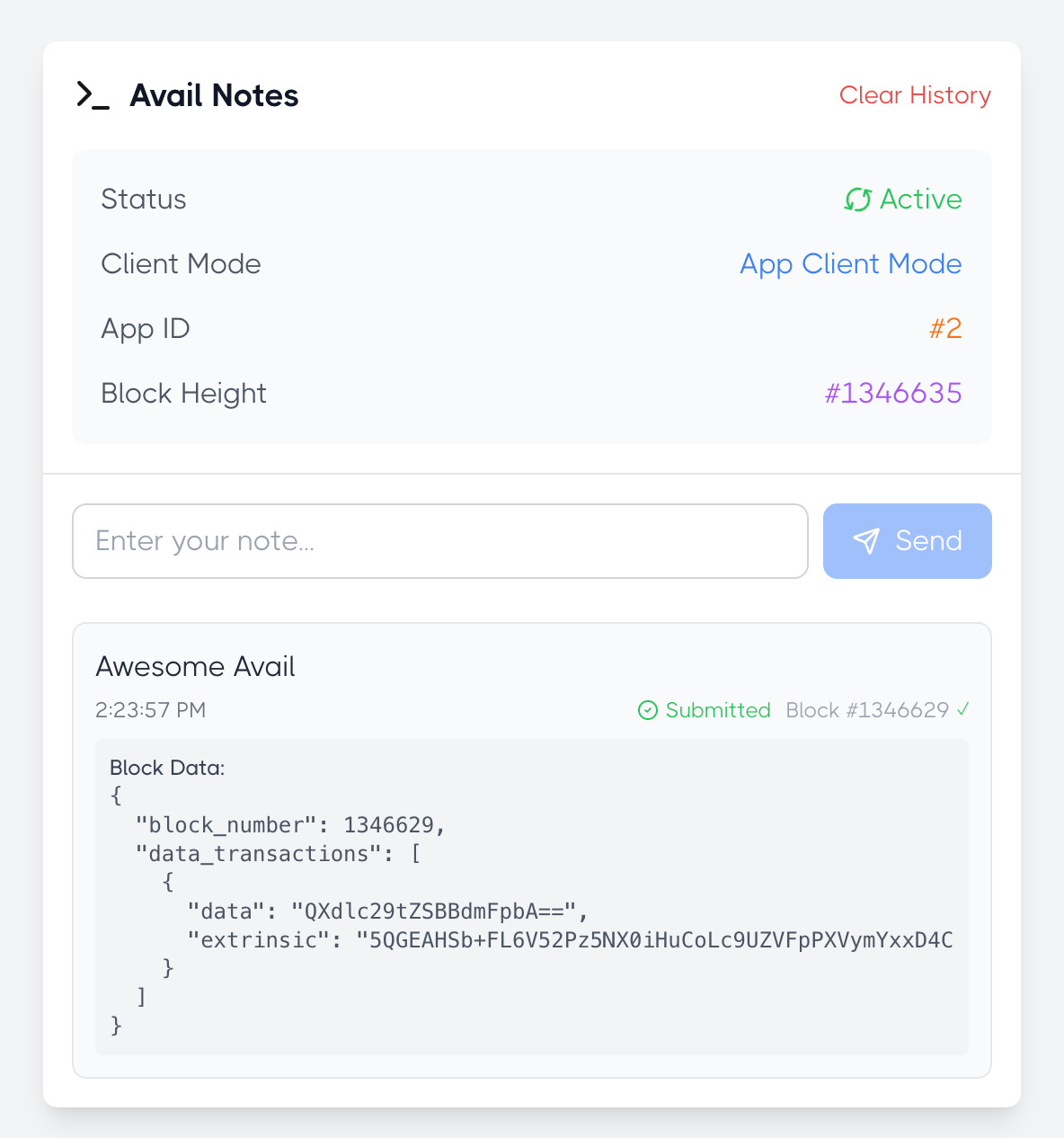

4. 增强功能：你在链上的笔记！ 使用 Avail 轻客户端跟踪区块确认
   1. 跟踪笔记确认
   2. 重试失败的提交
   3. 本地备份存储
   4. 消息历史记录管理

前提条件

开始之前，请确保你已具备：

• 安装了 Node.js 18.17 或更高版本
• 对 React 和 Next.js 有基本的了解
• 你选择的代码编辑器
• 在本地运行的 Avail 轻客户端

💡 Avail 新手？

• 账户创建指南
• 水龙头说明
• App ID 文档

设置基本应用程序

让我们逐步构建我们的笔记界面。 目标是创建一个干净、现代的 UI，稍后我们将它连接到 Avail 的网络。

1. 创建一个新的 Next.js 项目

首先，让我们使用 Tailwind CSS 创建一个新的 Next.js 应用程序：

npx create-next-app@latest avail-notes
cd avail-notes

出现提示时选择这些选项（只需按 Enter 即可获取我们想要的默认值）：

✔ 是否要使用 TypeScript？ › 否
✔ 是否要使用 ESLint？ › 是
✔ 是否要使用 Tailwind CSS？ › 是
✔ 是否要使用 src/ 目录？ › 否
✔ 是否要使用 App Router？ › 是
✔ 你想使用 Turbopack 进行 `next dev` 吗？› 否
✔ 你想自定义导入别名吗？ › 否

2. 添加我们的 UI 库

安装用于图标的 Lucide React 库：

npm install lucide-react

3. 设置项目结构

创建一个新的 components 目录：

mkdir app/components

4. 创建你的第一个组件

创建一个新文件 app/components/AvailNotesApp.js：

'use client';

import React, { useState } from 'react';
import { Terminal } from 'lucide-react';

const AvailNotesApp = () => {
  const [note, setNote] = useState('');

  return (
    <div className="max-w-xl mx-auto p-4">
      <div className="bg-white rounded-lg shadow-lg overflow-hidden">
        {/* Header */}
        <div className="p-4 border-b border-gray-200">
          <div className="flex items-center space-x-2">
            <Terminal className="w-6 h-6" />
            <h1 className="text-lg font-bold text-gray-900">Avail Notes</h1>
          </div>
        </div>

        {/* Content */}
        <div className="p-4">
          {/* Input area */}
          <div className="flex gap-2 mb-6">
            <input
              type="text"
              value={note}
              onChange={(e) => setNote(e.target.value)}
              placeholder="Enter your note..."
              className="flex-1 px-3 py-2 border border-gray-300 rounded-lg focus:outline-none focus:ring-2 focus:ring-blue-500"
            />
            <button
              disabled={!note}
              className="px-4 py-2 bg-blue-500 text-white rounded-lg disabled:opacity-50 disabled:cursor-not-allowed hover:bg-blue-600 transition-colors"
            >
              Send
            </button>
          </div>

          {/* Messages */}
          <div className="text-center text-gray-500 p-4">
            No notes yet. Start by sending one!
          </div>
        </div>
      </div>
    </div>
  );
};

export default AvailNotesApp;

5. 连接起来

将 app/page.js 的内容替换为：

import AvailNotesApp from './components/AvailNotesApp';

export default function Home() {
  return (
    <main className="min-h-screen bg-gray-100 py-8">
      <AvailNotesApp />
    </main>
  );
}

6. 启动它

运行开发服务器：

npm run dev

访问 http://localhost:3000，你将看到闪亮的新笔记 UI！

你应该会看到一个干净的 UI，如下所示：

项目组织

avail-notes/
├── app/
│   ├── components/
│   │   └── AvailNotesApp.js    # 奇迹发生的地方
│   ├── layout.js               # Tailwind 设置
│   └── page.js                 # 应用程序包装器
├── package.json
└── tailwind.config.js

💡

快速提示：我们暂时将所有内容放在一个组件中，以保持清晰。 稍后，你可能希望在应用程序增长时将其拆分！

第 2 部分：添加轻客户端连接

在开始编码之前，让我们了解一下我们连接的内容：

• Avail 轻客户端在本地端口 7007 上运行
• 提供 REST API 端点（我们将使用 /v2/status）
• 以“轻客户端模式”或“应用程序客户端模式”运行

1. 设置状态管理

首先，让我们添加跟踪客户端状态所需的状态：

const [status, setStatus] = useState('disconnected');
const [clientInfo, setClientInfo] = useState({
  mode: '',
  appId: null,
  blockHeight: 0
});
const [error, setError] = useState(null);

2. 创建状态检查器

接下来，让我们创建一个从轻客户端获取状态的函数：

const fetchStatus = async () => {
  try {
    const response = await fetch('http://localhost:7007/v2/status');
    if (!response.ok) {
      throw new Error('Light Client returned error status');
    }

    const data = await response.json();
    const clientMode = data.modes.includes('app')
      ? 'App Client Mode'
      : 'Light Client Mode';

    setClientInfo({
      mode: clientMode,
      appId: data.app_id,
      blockHeight: data.blocks.latest
    });
    setStatus('connected');
    setError(null);
  } catch (error) {
    console.error('Error fetching status:', error);
    setStatus('error');
    setError(error.message);
  }
};

3. 添加状态轮询

我们希望持续检查客户端的状态：

useEffect(() => {
  fetchStatus(); // Initial fetch
  const interval = setInterval(fetchStatus, 2000);
  return () => clearInterval(interval);
}, []);

4. 显示连接状态

最后，让我们将状态信息添加到我们的 UI：

{/* Status Cards */}
<div className="bg-gray-50 rounded-lg p-4 space-y-3">
  {/* Connection Status */}
  <div className="flex items-center justify-between">
    <span className="text-gray-600">Status</span>
    <span className="flex items-center text-green-500">
      {status === 'connected' && <RefreshCcw className="w-4 h-4 mr-1 animate-spin" />}
      {status === 'connected' ? 'Active' : status}
    </span>
  </div>

  {/* Client Mode */}
  <div className="flex items-center justify-between">
    <span className="text-gray-600">Client Mode</span>
    <span className="text-blue-500">{clientInfo.mode || 'Unknown'}</span>
  </div>

  {/* App ID (if available) */}
  {clientInfo.appId && (
    <div className="flex items-center justify-between">
      <span className="text-gray-600">App ID</span>
      <span className="text-orange-500">#{clientInfo.appId}</span>
    </div>
  )}

  {/* Block Height */}
  <div className="flex items-center justify-between">
    <span className="text-gray-600">Block Height</span>
    <span className="text-purple-500">#{clientInfo.blockHeight}</span>
  </div>

  {/* Error Display */}
  {error && (
    <div className="flex items-center gap-2 text-red-500 text-sm">
      <AlertCircle className="w-4 h-4" />
      {error}
    </div>
  )}
</div>

5. 试用一下！

启动你的轻客户端：

curl -sL1 avail.sh | bash -s – --app_id YOUR_APP_ID --network turing --identity ~/.avail/identity/identity.toml

启动你的应用程序：

npm run dev

访问 http://localhost:3000，你将看到你的连接状态！

你的 UI 现在看起来像：

💡 想要第 2 部分的完整代码？

'use client';

import React, { useState, useEffect } from 'react';
import { Terminal, RefreshCcw } from 'lucide-react';

const AvailNotesApp = () => {
  const [note, setNote] = useState('');
  const [status, setStatus] = useState('disconnected');
  const [clientInfo, setClientInfo] = useState({
    mode: '',
    appId: null,
    blockHeight: 0
  });

  // 从轻客户端获取状态
  const fetchStatus = async () => {
    try {
      const response = await fetch('http://localhost:7007/v2/status');
      const data = await response.json();

      const clientMode = data.modes.includes('app') ? 'App Client Mode' : 'Light Client Mode';
      setClientInfo({
        mode: clientMode,
        appId: data.app_id,
        blockHeight: data.blocks.latest
      });
      setStatus('connected');
    } catch (error) {
      console.error('Error fetching status:', error);
      setStatus('error');
    }
  };

  // 轮询状态更新
  useEffect(() => {
    fetchStatus(); // 初始获取
    const interval = setInterval(fetchStatus, 2000);
    return () => clearInterval(interval);
  }, []);

  return (
    <div className="max-w-xl mx-auto p-4">
      <div className="bg-white rounded-lg shadow-lg overflow-hidden">
        {/* Header */}
        <div className="p-4 border-b border-gray-200">
          <div className="flex items-center justify-between mb-4">
            <div className="flex items-center space-x-2">
              <Terminal className="w-6 h-6" />
              <h1 className="text-lg font-bold text-gray-900">Avail Notes</h1>
            </div>
          </div>

          {/* Status Cards */}
          <div className="bg-gray-50 rounded-lg p-4 space-y-3">
            <div className="flex items-center justify-between">
              <span className="text-gray-600">Status</span>
              <span className="flex items-center text-green-500">
                {status === 'connected' && <RefreshCcw className="w-4 h-4 mr-1 animate-spin" />}
                {status === 'connected' ? 'Active' : status}
              </span>
            </div>

            <div className="flex items-center justify-between">
              <span className="text-gray-600">Client Mode</span>
              <span className="text-blue-500">{clientInfo.mode || 'Unknown'}</span>
            </div>

            {clientInfo.appId && (
              <div className="flex items-center justify-between">
                <span className="text-gray-600">App ID</span>
                <span className="text-orange-500">#{clientInfo.appId}</span>
              </div>
            )}

            <div className="flex items-center justify-between">
              <span className="text-gray-600">Block Height</span>
              <span className="text-purple-500">#{clientInfo.blockHeight}</span>
            </div>
          </div>
        </div>

        {/* Content */}
        <div className="p-4">
          {/* Input area */}
          <div className="flex gap-2 mb-6">
            <input
              type="text"
              value={note}
              onChange={(e) => setNote(e.target.value)}
              placeholder="Enter your note..."
              className="flex-1 px-3 py-2 border border-gray-300 rounded-lg focus:outline-none focus:ring-2 focus:ring-blue-500"
            />
            <button
              disabled={!note || status !== 'connected'}
              className="px-4 py-2 bg-blue-500 text-white rounded-lg disabled:opacity-50 disabled:cursor-not-allowed hover:bg-blue-600 transition-colors"
            >
              Send
            </button>
          </div>

          <div className="text-center text-gray-500 p-4">
            No notes yet. Start by sending one!
          </div>
        </div>
      </div>
    </div>
  );
};

export default AvailNotesApp;

第 3 部分：添加消息功能

现在让我们的应用程序与 AvailDA 对话！ 我们将通过 5 个清晰的步骤来构建它：

1. 设置消息状态

首先，让我们添加状态来管理我们的消息：

import { Terminal, RefreshCcw, Send, Clock, CheckCircle2 } from 'lucide-react';

const [messages, setMessages] = useState([]);
const [note, setNote] = useState('');

2. 添加状态显示助手

让我们定义一个助手函数来管理消息状态显示：

const getStatusDisplay = (messageStatus) => {
  switch (messageStatus) {
    case 'pending':
      return {
        color: 'text-yellow-500',
        icon: <Clock className="w-3 h-3" />,
        text: 'Pending'
      };
    case 'submitted':
      return {
        color: 'text-green-500',
        icon: <CheckCircle2 className="w-3 h-3" />,
        text: 'Submitted'
      };
    case 'failed':
      return {
        color: 'text-red-500',
        icon: null,
        text: 'Failed'
      };
    default:
      return {
        color: 'text-gray-500',
        icon: null,
        text: messageStatus
      };
  }
};

3. 消息提交函数

这是将笔记提交到轻客户端的核心函数：

const submitNote = async () => {
  if (!note) return;

  // 创建待处理消息
  const pendingMessage = {
    id: Date.now(),
    data: note,
    timestamp: new Date().toLocaleTimeString(),
    status: 'pending',
  };

  // 添加到消息并清除输入
  setMessages(prev => [pendingMessage, ...prev]);
  setNote('');

  try {
    // 提交到轻客户端
    const response = await fetch('http://localhost:7007/v2/submit', {
      method: 'POST',
      headers: {
        'Content-Type': 'application/json',
      },
      body: JSON.stringify({
        data: btoa(note)  // 对笔记进行 Base64 编码
      })
    });

    if (!response.ok) {
      throw new Error('Failed to submit note');
    }

    const result = await response.json();

    // 成功后更新消息状态
    setMessages(prev => prev.map(msg =>
      msg.id === pendingMessage.id
        ? {
            ...msg,
            status: 'submitted',
            blockNumber: result.block_number
          }
        : msg
    ));
  } catch (error) {
    console.error('Error submitting note:', error);
    // 失败后更新消息状态
    setMessages(prev => prev.map(msg =>
      msg.id === pendingMessage.id
        ? {
            ...msg,
            status: 'failed'
          }
        : msg
    ));
  }
};

4. 添加消息输入 UI

用于新消息的输入区域：

{/* Input area */}
<div className="flex gap-2 mb-6">
  <input
    type="text"
    value={note}
    onChange={(e) => setNote(e.target.value)}
    onKeyPress={(e) => e.key === 'Enter' && submitNote()}
    placeholder="Enter your note..."
    className="flex-1 px-3 py-2 border border-gray-300 rounded-lg focus:outline-none focus:ring-2 focus:ring-blue-500"
  />
  <button
    onClick={submitNote}
    disabled={!note || status !== 'connected'}
    className="px-4 py-2 bg-blue-500 text-white rounded-lg flex items-center gap-2 disabled:opacity-50 disabled:cursor-not-allowed hover:bg-blue-600 transition-colors"
  >
    <Send className="w-4 h-4" />
    Send
  </button>
</div>

5. 添加消息显示 UI

用于显示所有消息的组件：

{/* Messages */}
<div className="space-y-3">
  {messages.map((msg) => {
    const statusDisplay = getStatusDisplay(msg.status);
    return (
      <div
        key={msg.id}
        className="p-3 bg-gray-50 rounded-lg border border-gray-200"
      >
        <p className="text-gray-800">{msg.data}</p>
        <div className="flex justify-between items-center mt-1">
          <p className="text-xs text-gray-500">{msg.timestamp}</p>
          <div className="flex items-center gap-2">
            <span className={`text-xs flex items-center gap-1 ${statusDisplay.color}`}>
              {statusDisplay.icon}
              {statusDisplay.text}
            </span>
            {msg.blockNumber && (
              <span className="text-xs text-gray-400">Block #{msg.blockNumber}</span>
            )}
          </div>
        </div>
      </div>
    );
  })}
  {messages.length === 0 && (
    <div className="text-center text-gray-500 p-4">
      No notes yet. Start by sending one!
    </div>
  )}
</div>

6. 试用一下！

启动你的轻客户端：

curl -sL1 avail.sh | bash -s – --app_id YOUR_APP_ID --network turing --identity ~/.avail/identity/identity.toml

启动你的应用程序：

npm run dev

访问 http://localhost:3000，然后发送你的第一条链上笔记！

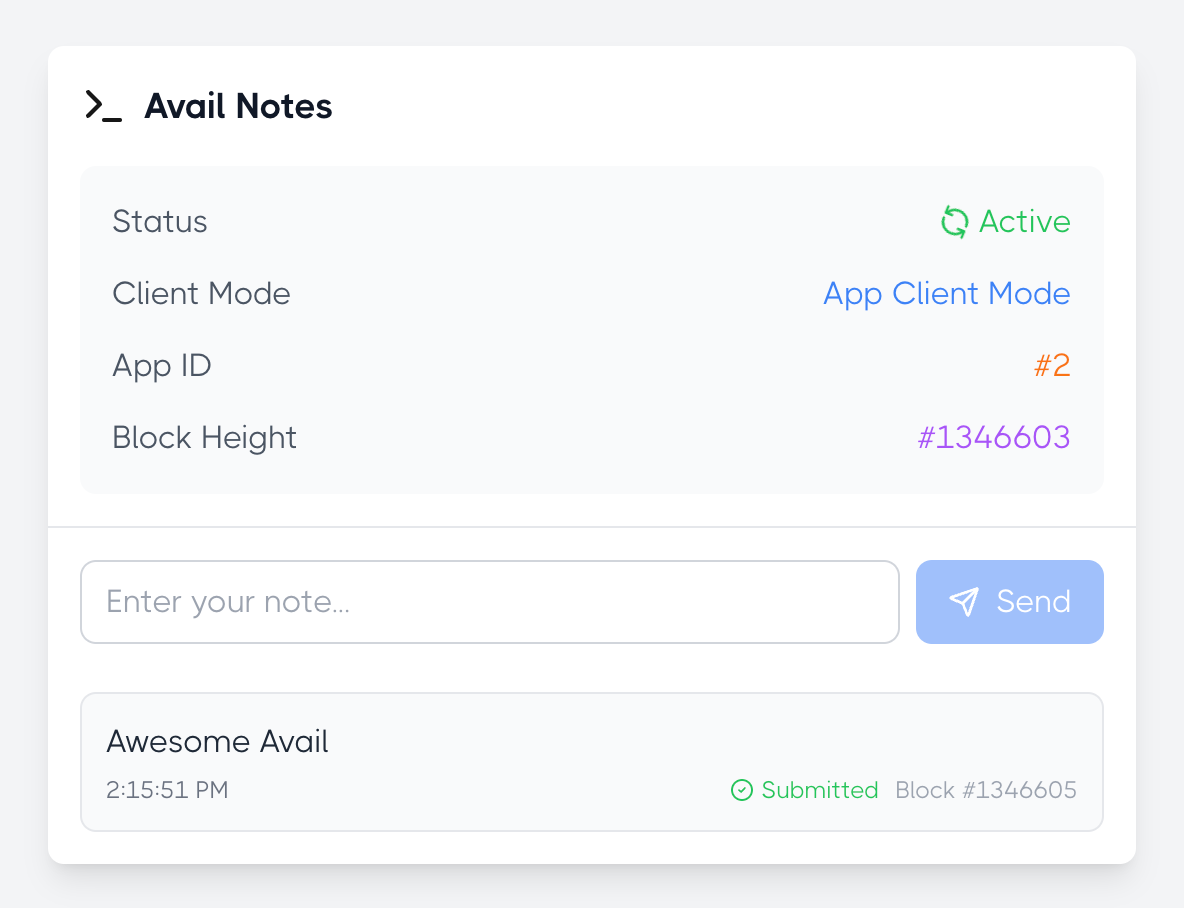

你的 UI 现在看起来像：

💡 想要第 3 部分的完整代码？

'use client';

import React, { useState, useEffect } from 'react';
import { Terminal, RefreshCcw, Send, Clock, CheckCircle2 } from 'lucide-react';

const AvailNotesApp = () => {
  const [note, setNote] = useState('');
  const [status, setStatus] = useState('disconnected');
  const [messages, setMessages] = useState([]);
  const [clientInfo, setClientInfo] = useState({
    mode: '',
    appId: null,
    blockHeight: 0
  });

  const fetchStatus = async () => {
    try {
      const response = await fetch('http://localhost:7007/v2/status');
      const data = await response.json();

      const clientMode = data.modes.includes('app') ? 'App Client Mode' : 'Light Client Mode';
      setClientInfo({
        mode: clientMode,
        appId: data.app_id,
        blockHeight: data.blocks.latest
      });
      setStatus('connected');
    } catch (error) {
      console.error('Error fetching status:', error);
      setStatus('error');
    }
  };

  useEffect(() => {
    fetchStatus();
    const interval = setInterval(fetchStatus, 2000);
    return () => clearInterval(interval);
  }, []);

  // 提交笔记
  const submitNote = async () => {
    if (!note) return;

    // 立即添加待处理消息
    const pendingMessage = {
      id: Date.now(),
      data: note,
      timestamp: new Date().toLocaleTimeString(),
      status: 'pending',
    };

    setMessages(prev => [pendingMessage, ...prev]);
    setNote(''); // 立即清除输入

    try {
      const response = await fetch('http://localhost:7007/v2/submit', {
        method: 'POST',
        headers: {
          'Content-Type': 'application/json',
        },
        body: JSON.stringify({
          data: btoa(note)
        })
      });

      if (!response.ok) {
        throw new Error('Failed to submit note');
      }

      const result = await response.json();

      // 使用提交详细信息更新消息
      setMessages(prev => prev.map(msg =>
        msg.id === pendingMessage.id
          ? {
              ...msg,
              status: 'submitted',
              blockNumber: result.block_number
            }
          : msg
      ));
    } catch (error) {
      console.error('Error submitting note:', error);
      setMessages(prev => prev.map(msg =>
        msg.id === pendingMessage.id
          ? {
              ...msg,
              status: 'failed'
            }
          : msg
      ));
    }
  };

  // 获取状态显示信息
  const getStatusDisplay = (messageStatus) => {
    switch (messageStatus) {
      case 'pending':
        return {
          color: 'text-yellow-500',
          icon: <Clock className="w-3 h-3" />,
          text: 'Pending'
        };
      case 'submitted':
        return {
          color: 'text-green-500',
          icon: <CheckCircle2 className="w-3 h-3" />,
          text: 'Submitted'
        };
      case 'failed':
        return {
          color: 'text-red-500',
          icon: null,
          text: 'Failed'
        };
      default:
        return {
          color: 'text-gray-500',
          icon: null,
          text: messageStatus
        };
    }
  };

  return (
    <div className="max-w-xl mx-auto p-4">
      <div className="bg-white rounded-lg shadow-lg overflow-hidden">
        {/* Header */}
        <div className="p-4 border-b border-gray-200">
          <div className="flex items-center justify-between mb-4">
            <div className="flex items-center space-x-2">
              <Terminal className="w-6 h-6" />
              <h1 className="text-lg font-bold text-gray-900">Avail Notes</h1>
            </div>
          </div>

          {/* Status Cards */}
          <div className="bg-gray-50 rounded-lg p-4 space-y-3">
            <div className="flex items-center justify-between">
              <span className="text-gray-600">Status</span>
              <span className="flex items-center text-green-500">
                {status === 'connected' && <RefreshCcw className="w-4 h-4 mr-1 animate-spin" />}
                {status === 'connected' ? 'Active' : status}
              </span>
            </div>

            <div className="flex items-center justify-between">
              <span className="text-gray-600">Client Mode</span>
              <span className="text-blue-500">{clientInfo.mode || 'Unknown'}</span>
            </div>

            {clientInfo.appId && (
              <div className="flex items-center justify-between">
                <span className="text-gray-600">App ID</span>
                <span className="text-orange-500">#{clientInfo.appId}</span>
              </div>
            )}

            <div className="flex items-center justify-between">
              <span className="text-gray-600">Block Height</span>
              <span className="text-purple-500">#{clientInfo.blockHeight}</span>
            </div>
          </div>
        </div>

        {/* Content */}
        <div className="p-4">
          {/* Input area */}
          <div className="flex gap-2 mb-6">
            <input
              type="text"
              value={note}
              onChange={(e) => setNote(e.target.value)}
              onKeyPress={(e) => e.key === 'Enter' && submitNote()}
              placeholder="Enter your note..."
              className="flex-1 px-3 py-2 border border-gray-300 rounded-lg focus:outline-none focus:ring-2 focus:ring-blue-500"
            />
            <button
              onClick={submitNote}
              disabled={!note || status !== 'connected'}
              className="px-4 py-2 bg-blue-500 text-white rounded-lg flex items-center gap-2 disabled:opacity-50 disabled:cursor-not-allowed hover:bg-blue-600 transition-colors"
            >
              <Send className="w-4 h-4" />
              Send
            </button>
          </div>

          {/* Messages */}
          <div className="space-y-3">
            {messages.map((msg) => {
              const statusDisplay = getStatusDisplay(msg.status);
              return (
                <div
                  key={msg.id}
                  className="p-3 bg-gray-50 rounded-lg border border-gray-200"
                >
                  <p className="text-gray-800">{msg.data}</p>
                  <div className="flex justify-between items-center mt-1">
                    <p className="text-xs text-gray-500">{msg.timestamp}</p>
                    <div className="flex items-center gap-2">
                      <span className={`text-xs flex items-center gap-1 ${statusDisplay.color}`}>
                        {statusDisplay.icon}
                        {statusDisplay.text}
                      </span>
                      {msg.blockNumber && (
                        <span className="text-xs text-gray-400">Block #{msg.blockNumber}</span>
                      )}
                    </div>
                  </div>
                </div>
              );
            })}
            {messages.length === 0 && (
              <div className="text-center text-gray-500 p-4">
                No notes yet. Start by sending one!
              </div>
            )}
          </div>
        </div>
      </div>
    </div>
  );
};

export default AvailNotesApp;

第 4 部分：使用区块数据增强消息功能

让我们使用一些高级功能来增强我们的应用程序！ 我们将添加区块数据跟踪、本地存储和消息管理。

添加智能区块数据获取

首先，让我们添加我们的弹性区块数据获取函数：

const fetchBlockData = async (blockNumber, attempt = 0) => {
  try {
    const response = await fetch(
      `http://localhost:7007/v2/blocks/${blockNumber}/data?fields=data,extrinsic`
    );

    if (!response.ok) {
      // 如果我们得到 404，则区块可能尚未同步
      if (response.status === 404) {
        if (attempt < 5) {
          const delay = 2000 * Math.pow(2, attempt);
          await new Promise(resolve => setTimeout(resolve, delay));
          return fetchBlockData(blockNumber, attempt + 1);
        }
        return null;
      }
      throw new Error('Failed to fetch block data');
    }

    const blockData = await response.json();
    return blockData;
  } catch (error) {
    console.error(`Error fetching block ${blockNumber}:`, error);
    if (attempt < 5) {
      const delay = 2000 * Math.pow(2, attempt);
      await new Promise(resolve => setTimeout(resolve, delay));
      return fetchBlockData(blockNumber, attempt + 1);
    }
    return null;
  }
};

2. 在本地保存笔记

使用专用密钥设置消息的存储：

const STORAGE_KEY = 'avail-notes-blocks';

// 在初始渲染时加载消息
useEffect(() => {
  const savedMessages = localStorage.getItem(STORAGE_KEY);
  if (savedMessages) {
    try {
      setMessages(JSON.parse(savedMessages));
    } catch (e) {
      console.error('Error loading saved messages:', e);
    }
  }
}, []);

// 在消息更改时保存消息
useEffect(() => {
  localStorage.setItem(STORAGE_KEY, JSON.stringify(messages));
}, [messages]);

3. 跟踪区块确认

为消息添加自动区块数据加载：

useEffect(() => {
  const loadBlockData = async () => {
    const updatedMessages = await Promise.all(
      messages.map(async (msg) => {
        if (msg.status === 'submitted' && msg.blockNumber && !msg.blockData) {
          const blockData = await fetchBlockData(msg.blockNumber);
          return {
            ...msg,
            blockData
          };
        }
        return msg;
      })
    );

    if (JSON.stringify(messages) !== JSON.stringify(updatedMessages)) {
      setMessages(updatedMessages);
    }
  };

  loadBlockData();
}, [messages]);

4. 添加消息管理

添加处理消息操作的函数：

const clearHistory = () => {
  if (window.confirm('Are you sure you want to clear all message history?')) {
    setMessages([]);
    localStorage.removeItem(STORAGE_KEY);
  }
};

const deleteMessage = (id) => {
  setMessages(prev => prev.filter(msg => msg.id !== id));
};

5. 增强的用户界面

将清除历史记录按钮添加到标题：

<div className="flex items-center justify-between mb-4">
  <div className="flex items-center space-x-2">
    <Terminal className="w-6 h-6" />
    <h1 className="text-lg font-bold text-gray-900">Avail Notes</h1>
  </div>
  {messages.length > 0 && (
    <button
      onClick={clearHistory}
      className="text-sm text-red-500 hover:text-red-600"
    >
      Clear History
    </button>
  )}
</div>

更新消息组件以包含删除功能和块数据：

<div
  key={msg.id}
  className="p-3 bg-gray-50 rounded-lg border border-gray-200 relative group"
>
  <button
    onClick={() => deleteMessage(msg.id)}
    className="absolute top-2 right-2 text-gray-400 hover:text-red-500 opacity-0 group-hover:opacity-100 transition-opacity"
  >
    <Trash2 className="w-4 h-4" />
  </button>
  <p className="text-gray-800 pr-8">{msg.data}</p>
  <div className="flex justify-between items-center mt-1">
    <p className="text-xs text-gray-500">{msg.timestamp}</p>
    <div className="flex items-center gap-2">
      <span className={`text-xs flex items-center gap-1 ${statusDisplay.color}`}>
        {statusDisplay.icon}
        {statusDisplay.text}
        {msg.retries > 0 && ` (${msg.retries} ${msg.retries === 1 ? 'retry' : 'retries'})`}
      </span>
      {msg.blockNumber && (
        <span className="text-xs text-gray-400 hover:text-blue-500 cursor-pointer">
          Block #{msg.blockNumber}
          {msg.blockData && (
            <span className="ml-1 text-xs text-green-500">✓</span>
          )}
        </span>
      )}
    </div>
  </div>
  {msg.blockData && (
    <div className="mt-2 text-xs bg-gray-100 p-2 rounded">
      <p className="font-medium text-gray-700">Block Data:</p>
      <pre className="overflow-x-auto text-gray-600">
        {JSON.stringify(msg.blockData, null, 2)}
      </pre>
    </div>
  )}
</div>

6. 尝试一下！

启动你的轻客户端：

curl -sL1 avail.sh | bash -s – --app_id YOUR_APP_ID --network turing --identity ~/.avail/identity/identity.toml

启动你的应用：

npm run dev

访问 http://localhost:3000 并尝试：

• 发送消息
• 观看区块确认
• 删除消息
• 清除历史记录
• 刷新页面（你的笔记会保留！）

你的用户界面现在看起来像：

💡 想要第四部分的完整代码吗？

'use client';

import React, { useState, useEffect } from 'react';
import { Terminal, RefreshCcw, Send, Clock, CheckCircle2, Trash2, AlertCircle } from 'lucide-react';

const STORAGE_KEY = 'avail-notes-blocks';

const AvailNotesApp = () => {
  const [note, setNote] = useState('');
  const [status, setStatus] = useState('disconnected');
  const [messages, setMessages] = useState([]);
  const [clientInfo, setClientInfo] = useState({
    mode: '',
    appId: null,
    blockHeight: 0
  });
  const [error, setError] = useState(null);

  const fetchBlockData = async (blockNumber, attempt = 0) => {
    try {
      const response = await fetch(
        `http://localhost:7007/v2/blocks/${blockNumber}/data?fields=data,extrinsic`
      );

      if (!response.ok) {
        // If we get a 404, the block might not be synced yet
        if (response.status === 404) {
          if (attempt < 5) { // Try up to 5 times
            // Exponential backoff: 2s, 4s, 8s, 16s, 32s
            const delay = 2000 * Math.pow(2, attempt);
            await new Promise(resolve => setTimeout(resolve, delay));
            return fetchBlockData(blockNumber, attempt + 1);
          }
          // After max retries, return null but don't treat as error
          return null;
        }
        // For other errors, throw
        throw new Error('Failed to fetch block data');
      }

      const blockData = await response.json();
      return blockData;
    } catch (error) {
      console.error(`Error fetching block ${blockNumber}:`, error);
      if (attempt < 5) {
        // Retry on network errors too
        const delay = 2000 * Math.pow(2, attempt);
        await new Promise(resolve => setTimeout(resolve, delay));
        return fetchBlockData(blockNumber, attempt + 1);
      }
      return null;
    }
  };

  // Load messages from localStorage on initial render
  useEffect(() => {
    const savedMessages = localStorage.getItem(STORAGE_KEY);
    if (savedMessages) {
      try {
        setMessages(JSON.parse(savedMessages));
      } catch (e) {
        console.error('Error loading saved messages:', e);
      }
    }
  }, []);

  // Save messages to localStorage whenever they change
  useEffect(() => {
    localStorage.setItem(STORAGE_KEY, JSON.stringify(messages));
  }, [messages]);

  // Load block data for messages
  useEffect(() => {
    const loadBlockData = async () => {
      const updatedMessages = await Promise.all(
        messages.map(async (msg) => {
          if (msg.status === 'submitted' && msg.blockNumber && !msg.blockData) {
            const blockData = await fetchBlockData(msg.blockNumber);
            return {
              ...msg,
              blockData
            };
          }
          return msg;
        })
      );

      if (JSON.stringify(messages) !== JSON.stringify(updatedMessages)) {
        setMessages(updatedMessages);
      }
    };

    loadBlockData();
  }, [messages]);

  const fetchStatus = async () => {
    try {
      const response = await fetch('http://localhost:7007/v2/status');
      if (!response.ok) {
        throw new Error('Light Client returned error status');
      }
      const data = await response.json();

      const clientMode = data.modes.includes('app') ? 'App Client Mode' : 'Light Client Mode';
      setClientInfo({
        mode: clientMode,
        appId: data.app_id,
        blockHeight: data.blocks.latest
      });
      setStatus('connected');
      setError(null);
    } catch (error) {
      console.error('Error fetching status:', error);
      setStatus('error');
      setError(error.message);
    }
  };

  useEffect(() => {
    fetchStatus();
    const interval = setInterval(fetchStatus, 2000);
    return () => clearInterval(interval);
  }, []);

  const submitNote = async () => {
    if (!note) return;

    const pendingMessage = {
      id: Date.now(),
      data: note,
      timestamp: new Date().toLocaleTimeString(),
      status: 'pending',
      retries: 0,
      blockNumber: null,
      blockData: null
    };

    setMessages(prev => [pendingMessage, ...prev]);
    setNote('');

    const submitWithRetry = async (message, attempt = 0) => {
      try {
        const response = await fetch('http://localhost:7007/v2/submit', {
          method: 'POST',
          headers: {
            'Content-Type': 'application/json',
          },
          body: JSON.stringify({
            data: btoa(message.data)
          })
        });

        if (!response.ok) {
          throw new Error('Failed to submit note');
        }

        const result = await response.json();

        setMessages(prev => prev.map(msg =>
          msg.id === message.id
            ? {
                ...msg,
                status: 'submitted',
                blockNumber: result.block_number,
                retries: attempt
              }
            : msg
        ));
      } catch (error) {
        console.error('Error submitting note:', error);

        if (attempt < 2) { // Retry up to 2 times
          setTimeout(() => {
            submitWithRetry(message, attempt + 1);
          }, 1000 * (attempt + 1)); // Exponential backoff

          setMessages(prev => prev.map(msg =>
            msg.id === message.id
              ? {
                  ...msg,
                  status: 'retrying',
                  retries: attempt + 1
                }
              : msg
          ));
        } else {
          setMessages(prev => prev.map(msg =>
            msg.id === message.id
              ? {
                  ...msg,
                  status: 'failed',
                  error: error.message,
                  retries: attempt
                }
              : msg
          ));
        }
      }
    };

    submitWithRetry(pendingMessage);
  };

  const clearHistory = () => {
    if (window.confirm('Are you sure you want to clear all message history?')) {
      setMessages([]);
      localStorage.removeItem(STORAGE_KEY);
    }
  };

  const deleteMessage = (id) => {
    setMessages(prev => prev.filter(msg => msg.id !== id));
  };

  const getStatusDisplay = (messageStatus) => {
    switch (messageStatus) {
      case 'pending':
        return {
          color: 'text-yellow-500',
          icon: <Clock className="w-3 h-3" />,
          text: 'Pending'
        };
      case 'retrying':
        return {
          color: 'text-orange-500',
          icon: <RefreshCcw className="w-3 h-3 animate-spin" />,
          text: 'Retrying'
        };
      case 'submitted':
        return {
          color: 'text-green-500',
          icon: <CheckCircle2 className="w-3 h-3" />,
          text: 'Submitted'
        };
      case 'failed':
        return {
          color: 'text-red-500',
          icon: <AlertCircle className="w-3 h-3" />,
          text: 'Failed'
        };
      default:
        return {
          color: 'text-gray-500',
          icon: null,
          text: messageStatus
        };
    }
  };

  return (
    <div className="max-w-xl mx-auto p-4">
      <div className="bg-white rounded-lg shadow-lg overflow-hidden">
        {/* Header */}
        <div className="p-4 border-b border-gray-200">
          <div className="flex items-center justify-between mb-4">
            <div className="flex items-center space-x-2">
              <Terminal className="w-6 h-6" />
              <h1 className="text-lg font-bold text-gray-900">Avail Notes</h1>
            </div>
            {messages.length > 0 && (
              <button
                onClick={clearHistory}
                className="text-sm text-red-500 hover:text-red-600"
              >
                Clear History
              </button>
            )}
          </div>

          {/* Status Cards */}
          <div className="bg-gray-50 rounded-lg p-4 space-y-3">
            <div className="flex items-center justify-between">
              <span className="text-gray-600">Status</span>
              <span className="flex items-center text-green-500">
                {status === 'connected' && <RefreshCcw className="w-4 h-4 mr-1 animate-spin" />}
                {status === 'connected' ? 'Active' : status}
              </span>
            </div>

            <div className="flex items-center justify-between">
              <span className="text-gray-600">Client Mode</span>
              <span className="text-blue-500">{clientInfo.mode || 'Unknown'}</span>
            </div>

            {clientInfo.appId && (
              <div className="flex items-center justify-between">
                <span className="text-gray-600">App ID</span>
                <span className="text-orange-500">#{clientInfo.appId}</span>
              </div>
            )}

            <div className="flex items-center justify-between">
              <span className="text-gray-600">Block Height</span>
              <span className="text-purple-500">#{clientInfo.blockHeight}</span>
            </div>

            {error && (
              <div className="flex items-center gap-2 text-red-500 text-sm">
                <AlertCircle className="w-4 h-4" />
                {error}
              </div>
            )}
          </div>
        </div>

        {/* Content */}
        <div className="p-4">
          {/* Input area */}
          <div className="flex gap-2 mb-6">
            <input
              type="text"
              value={note}
              onChange={(e) => setNote(e.target.value)}
              onKeyPress={(e) => e.key === 'Enter' && submitNote()}
              placeholder="Enter your note..."
              className="flex-1 px-3 py-2 border border-gray-300 rounded-lg focus:outline-none focus:ring-2 focus:ring-blue-500"
            />
            <button
              onClick={submitNote}
              disabled={!note || status !== 'connected'}
              className="px-4 py-2 bg-blue-500 text-white rounded-lg flex items-center gap-2 disabled:opacity-50 disabled:cursor-not-allowed hover:bg-blue-600 transition-colors"
            >
              <Send className="w-4 h-4" />
              Send
            </button>
          </div>

          {/* Messages */}
          <div className="space-y-3">
            {messages.map((msg) => {
              const statusDisplay = getStatusDisplay(msg.status);
              return (
                <div
                  key={msg.id}
                  className="p-3 bg-gray-50 rounded-lg border border-gray-200 relative group"
                >
                  <button
                    onClick={() => deleteMessage(msg.id)}
                    className="absolute top-2 right-2 text-gray-400 hover:text-red-500 opacity-0 group-hover:opacity-100 transition-opacity"
                  >
                    <Trash2 className="w-4 h-4" />
                  </button>
                  <p className="text-gray-800 pr-8">{msg.data}</p>
                  <div className="flex justify-between items-center mt-1">
                    <p className="text-xs text-gray-500">{msg.timestamp}</p>
                    <div className="flex items-center gap-2">
                      <span className={`text-xs flex items-center gap-1 ${statusDisplay.color}`}>
                        {statusDisplay.icon}
                        {statusDisplay.text}
                        {msg.retries > 0 && ` (${msg.retries} ${msg.retries === 1 ? 'retry' : 'retries'})`}
                      </span>
                      {msg.blockNumber && (
                        <span className="text-xs text-gray-400 hover:text-blue-500 cursor-pointer">
                          Block #{msg.blockNumber}
                          {msg.blockData && (
                            <span className="ml-1 text-xs text-green-500">✓</span>
                          )}
                        </span>
                      )}
                    </div>
                  </div>
                  {msg.blockData && (
                    <div className="mt-2 text-xs bg-gray-100 p-2 rounded">
                      <p className="font-medium text-gray-700">Block Data:</p>
                      <pre className="overflow-x-auto text-gray-600">
                        {JSON.stringify(msg.blockData, null, 2)}
                      </pre>
                    </div>
                  )}
                  {msg.error && (
                    <p className="text-xs text-red-500 mt-1">{msg.error}</p>
                  )}
                </div>
              );
            })}
            {messages.length === 0 && (
              <div className="text-center text-gray-500 p-4">
                No notes yet. Start by sending one!
              </div>
            )}
          </div>
        </div>
      </div>
    </div>
  );
};

export default AvailNotesApp;

任务完成！

祝贺你 - 你已经构建了一个功能齐全的去中心化笔记应用程序！你已经迈出了进入数据可用性世界的第一步，创建了一个应用程序，它可以：

• ✍️ 将笔记直接写入 Avail 的 DA 层
• 🔍 通过区块链跟踪你的数据
• ✅ 验证你的笔记是否安全存储

你写的每条笔记现在都以去中心化、可验证的方式存储。 对于你的第一个区块链应用程序来说，非常酷！

💡 专家提示：虽然我们为了学习直接与 Avail 的 DA 层对话，但生产应用程序通常使用 Rollup 或扩展解决方案。 将这视为你构建更大事物的基石！

查看 Light Client API 文档 以获取更多通过你的新轻客户端与 Avail 交互的方式！

接下来是什么？

• 📚 深入研究 Light Client API 文档

• 🔒 确保你的身份文件和 App ID 安全（它们是你访问 Avail 的 🔑！）

• 🛠️ 开始构建你自己的 DA 驱动的应用程序

• • *

来分享你构建的内容并获得支持：

• Discord
• Twitter
• Gihub

教程 传递区块 Avail DA 开发者 黑客松

• 原文链接： blog.availproject.org/bu...
• 登链社区 AI 助手，为大家转译优秀英文文章，如有翻译不通的地方，还请包涵～
