⚠️ Draft Standards Track: ERC

ERC-7908: 金库管理中的 HD 钱包

用于金库系统的 HD 钱包,通过加密密钥路径隔离实体和部门。

Authors Xiaoyu Liu (@elizabethxiaoyu) <jiushi.lxy@antgroup.com>, Yuxiang Fu (@tmac4096) <kunfu.fyx@antgroup.com>, Yanyi Liang <eason.lyy@antgroup.com>, Hao Zou (@BruceZH0915) <situ.zh@antgroup.com>, Siyuan Zheng (@andrewcoder666) <zhengsiyuan.zsy@antgroup.com>, yuanshanhshan (@xunayuan) <yuanshanshan.yss@antgroup.com>
Created 2025-03-07
Discussion Link https://ethereum-magicians.org/t/new-erc-deterministic-account-hierarchy-in-treasury-management/23073

摘要

本提案旨在为机构资产的链上金库管理提供一种标准化的方法,确保安全的私钥生成、分层管理和部门权限隔离,同时支持多链环境中的资产安全和交易效率。通过定义统一的推导路径和安全机制,本提案为金库管理提供了一种高效且安全的解决方案。

动机

随着区块链和 DeFi 的快速发展,链上资产的安全管理已变得至关重要。传统的私钥管理难以满足大型组织在复杂场景中的安全需求,在这些场景中,分层密钥管理、权限控制和多重签名机制至关重要。本提案为机构金库管理提供了一种标准化的解决方案,确保资产安全和交易效率。

规范

推导路径

为了安全地进行链上金库账户密钥管理,实现方式必须使用以下分层确定性 (HD) 路径:

m/44'/60'/entity_id' / department_id' / account_index

路径组成部分:

  1. 主密钥 (m)

    • 应该代表根 HD 钱包私钥。
  2. BIP-44 合规层 (44')

    • 必须使用 44'(强化)来指示 BIP-44 合规性。
  3. 币种类型层 (60')

    • 对于以太坊和 EVM 兼容链应该使用 60'(强化)。
  4. 实体标识符 (entity_id')

    • 必须通过将子公司名称哈希为强化索引来派生。
    • 不得在不同的子公司之间重复使用相同的 entity_id'
  5. 部门标识符 (department_id')

    • 应该通过将部门名称哈希为强化索引来派生。
    • 必须通过强化派生隔离部门之间的密钥。
  6. 账户索引 (account_index)

    • 必须使用非强化派生以允许统一的账户管理。

关于 BIP-44 适配的说明

  • 由于以太坊/EVM 的账户模型(非 UTXO),BIP-44 change应该省略。

哈希转换

为了推导出 entity_iddepartment_id

  1. 实体索引计算

    • 应该entity_id 计算为:
entity_hash = sha256(f"ENTITY:{entity}".encode()).digest()
entity_index = int.from_bytes(entity_hash[:4], "big") | 0x80000000   # 2^31 ≤ index < 2^32
  1. 部门索引计算

    • 必须department_id 计算为:
dept_hash = sha256(f"DEPT:{entity_hash}:{department}".encode()).digest()
dept_index = int.from_bytes(dept_hash[:4], "big") | 0x80000000   # 2^31 ≤ index < 2^32
  1. 输出约束

    • 生成的索引必须[2^31, 2^32-1] 范围内的整数,以强制执行强化派生。

基于角色的访问扩展路径

为了更精细的访问控制(例如,部门内的角色):

m/60'/entity_id' / department_id' /role_id'/ account_index
  1. 角色标识符 (role_id')

    • 应该使用强化派生来隔离特定于角色的密钥。

兼容性提示

  • 省略 44'可能会导致与标准钱包(例如,MetaMask)不兼容。
  • 与此类钱包的集成必须实现自定义插件来处理此偏差。

较小实体的简化路径

对于没有子公司的实体:

m/44'/60' / department_id' /0/ account_index

兼容性保证

  • 此结构应该确保与主流 BIP-44 钱包的兼容性。

密钥派生算法

实现方式必须遵守:

E = Map<entity, List<Department>>
n = Layer2 curve order
path = m/44'/60'/entity_id' / department_id' / account_index
BIP32() = Official BIP-0032 derivation function on secp256k1
hash = SHA256
root_key = BIP32(path)
for each E:
	key = hash(root_key|hierarchical_hash_to_index(entity,department))
	return key

加密要求

  • 应该将 BIP-0032 与 secp256k1 一起使用以进行 HD 派生。
  • 必须将哈希与根密钥连接起来,以防止跨层密钥泄漏。

兼容性考虑

本规范的灵感来自 BIP-44 (m/purpose'/coin_type'/account'/change/address_index),但是:

  • 不得为基于以太坊的系统使用 change 层。
  • 可以为了满足组织需求,将层次结构扩展到 BIP-44 的 5 层结构之外。

理由

本提案适用的场景有:

  1. 公司和部门隔离:集团内的不同子公司,以及每个子公司内的不同部门,都可以创建隔离的链上账户。增强的派生用于隔离暴露风险。
  2. 集团统一管理权限:集团管理员持有主私钥,可以派生所有子公司的私钥,从而授予整个集团查看和发起交易的最高权限,方便集团管理员进行统一管理。
  3. 共享部门私钥:如果子公司 A 的管理员 Alice 需要与新管理员 Bob 共享子公司 A 下的账户,她只需要共享子公司 A 的主私钥。然后可以从该密钥派生各个部门的账户。
  4. 共享审计公钥:如果审计部门需要审计特定部门下的交易,可以将指定部门的扩展公钥与审计部门共享。通过这个扩展公钥,可以派生该部门下的所有下属公钥,使审计部门可以跟踪与这些公钥地址相关的所有交易。

向后兼容性

本标准符合 BIP39、BIP32、BIP44。

参考实现

"""
Secure Treasury Management System
企业级分层确定性钱包实现,符合 BIP-44
"""

import hashlib
import logging
from typing import Tuple, Dict
from bip32utils import BIP32Key
from eth_account import Account
from mnemonic import Mnemonic  # 添加 BIP39 支持

# 配置日志
logging.basicConfig(level=logging.INFO)
logger = logging.getLogger("TreasurySystem")

class TreasurySystem:
    def __init__(self, mnemonic: str):
        """
        初始化金库系统
        :param mnemonic: BIP-39 助记词(12/24 个单词)
        """
        if not Mnemonic("english").check(mnemonic):
            raise ValueError("Invalid BIP-39 mnemonic")

        # 使用标准 BIP-39 生成种子
        self.seed = Mnemonic.to_seed(mnemonic, passphrase="")
        self.root_key = BIP32Key.fromEntropy(self.seed)

        logger.info("Treasury system initialized. Master key fingerprint: %s",
                  self.root_key.Fingerprint().hex())

    @staticmethod
    def _hierarchical_hash(entity: str, department: str) -> Tuple[int, int]:
        """
        分层哈希计算(符合提案规范)
        Returns: (entity_index, department_index)
        """
        # 实体哈希
        entity_hash = hashlib.sha256(f"ENTITY:{entity}".encode()).digest()
        entity_index = int.from_bytes(entity_hash[:4], 'big') | 0x80000000

        # 部门哈希(链式)
        dept_input = f"DEPT:{entity_hash.hex()}:{department}".encode()
        dept_hash = hashlib.sha256(dept_input).digest()
        dept_index = int.from_bytes(dept_hash[:4], 'big') | 0x80000000

        return entity_index, dept_index

    def _derive_key(self, path: list) -> BIP32Key:
        """通用密钥派生方法"""
        current_key = self.root_key
        for index in path:
            if not isinstance(index, int):
                raise TypeError(f"Invalid derivation index type: {type(index)}")
            current_key = current_key.ChildKey(index)
        return current_key

    def generate_account(self, entity: str, department: str,
                        account_idx: int = 0) -> Dict[str, str]:
        """
        生成部门账户(BIP44 5 层结构)
        Path: m/44'/60'/entity'/dept'/account_idx
        """
        e_idx, d_idx = self._hierarchical_hash(entity, department)

        # BIP-44 标准路径
        derivation_path = [
            0x8000002C,  # 44' (强化)
            0x8000003C,  # 60' (以太坊)
            e_idx,       # entity_index (强化)
            d_idx,       # department_index (强化)
            account_idx  # 地址索引
        ]

        key = self._derive_key(derivation_path)
        priv_key = key.PrivateKey().hex()

        return {
            'path': f"m/44'/60'/{e_idx}'/{d_idx}'/{account_idx}",
            'private_key': priv_key,  # 警告:切勿在生产环境中暴露此信息
            'address': Account.from_key(priv_key).address
        }

    def get_audit_xpub(self, entity: str, department: str) -> str:
        """
        检索部门级扩展公钥(用于审计)
        Path: m/44'/60'/entity'/dept'
        """
        e_idx, d_idx = self._hierarchical_hash(entity, department)
        path = [
            0x8000002C,  # 44'
            0x8000003C,  # 60'
            e_idx,       # entity'
            d_idx        # dept'
        ]
        return self._derive_key(path).ExtendedKey()

    def get_dept_xprv(self, entity: str, department: str) -> str:
        """
        获取部门级扩展私钥(严格控制)
        Path: m/44'/60'/entity'/dept'
        """
        e_idx, d_idx = self._hierarchical_hash(entity, department)
        path = [
            0x8000002C,  # 44'
            0x8000003C,  # 60'
            e_idx,       # entity'
            d_idx        # dept'
        ]
        return self._derive_key(path).ExtendedKey()


    @staticmethod
    def derive_addresses_from_xpub(xpub: str, count: int = 20) -> list:
        """从扩展公钥派生地址(审计用途)"""
        audit_key = BIP32Key.fromExtendedKey(xpub)
        return [
            Account.from_key(
                audit_key
                        .ChildKey(i)   # 地址索引
                        .PrivateKey()
            ).address
            for i in range(count)
        ]


if __name__ == "__main__":
    # 示例用法(删除生产环境中的私钥打印)
    try:
        # 使用标准助记词
        mnemo = Mnemonic("english")
        mnemonic = mnemo.generate(strength=256)
        treasury = TreasurySystem(mnemonic)
        print(f"mnemonic: {mnemonic}")

        print("\n=== 财务部门账户生成 ===")
        finance_acc1 = treasury.generate_account("GroupA", "Finance", 0)
        finance_acc2 = treasury.generate_account("GroupA", "Finance", 1)
        print(f"Account1 path: {finance_acc1['path']}")
        print(f"Account1 address: {finance_acc1['address']}")
        print(f"Account1 private key: {finance_acc1['private_key']}")
        print(f"Account2 path: {finance_acc2['path']}")
        print(f"Account2 address: {finance_acc2['address']}")
        print(f"Account2 private key: {finance_acc2['private_key']}")

        print("\n=== 审计验证测试 ===")
        audit_xpub = treasury.get_audit_xpub("GroupA", "Finance")
        print(f"Audit xpub: {audit_xpub}")
        audit_addresses = TreasurySystem.derive_addresses_from_xpub(audit_xpub, 2)
        print(f"Audit-derived addresses: {audit_addresses}")

        assert finance_acc1['address'] in audit_addresses, "Audit verification failed"
        assert finance_acc2['address'] in audit_addresses, "Audit verification failed"
        print("✅ Audit verification successful")

        print("\n=== 部门隔离测试 ===")
        other_dept_acc = treasury.generate_account("GroupA", "Audit", 0)
        print(f"Account3 path: {other_dept_acc['path']}")
        print(f"Account3 address: {other_dept_acc['address']}")
        assert other_dept_acc['address'] not in audit_addresses, "Isolation breach"
        print("✅ Department isolation effective")


        print("\n=== 部门私钥共享测试 ===")
        # 获取部门级扩展私钥
        dept_xprv = treasury.get_audit_xpub("GroupA", "Finance").replace('xpub', 'xprv')  # 实际应通过专用方法获取
        print(f"Fiance xprv: {dept_xprv}")
        # 从扩展私钥派生账户私钥
        dept_key = BIP32Key.fromExtendedKey(dept_xprv)
        derived_acc0_key = dept_key.ChildKey(0).PrivateKey().hex()
        derived_acc1_key = dept_key.ChildKey(1).PrivateKey().hex()
        print(f"Fiance derived_acc0_key: {derived_acc0_key}")
        print(f"Fiance derived_acc1_key: {derived_acc1_key}")
        # 验证私钥派生能力
        assert derived_acc0_key == finance_acc1['private_key'], \
            "Account 0 private key derivation failed"
        assert derived_acc1_key == finance_acc2['private_key'], \
            "Account 1 private key derivation failed"
        print("✅ Private key derivation from department xprv successful")

    except Exception as e:
        logger.error("System error: %s", e, exc_info=True)

运行脚本:

pip install bip32utils eth_account

python stms.py

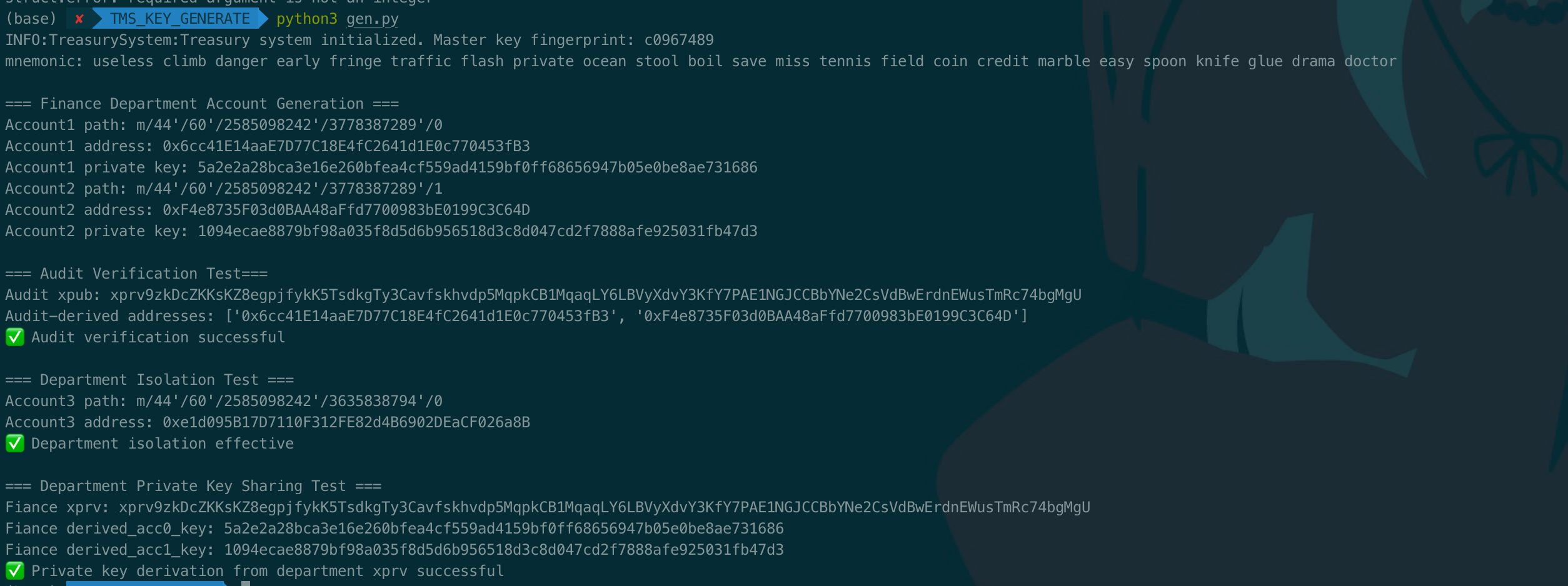

输出:

安全注意事项

对于金库管理者来说,分层确定性钱包管理更加方便,但需要额外考虑主密钥的保护措施,例如用于拆分和存储助记词或主密钥的方案。

版权

版权及相关权利通过 CC0 放弃。
