让我们尝试从头开始去构建一个以太坊虚拟机(EVM)!只参考以太坊黄皮书(yellowpaper)
阅读完Cupid的 Playdate with the EVM 这篇文章后,我非常享受,但想要更多地去实践操作。 因此让我们尝试从头开始去构建一个以太坊虚拟机(EVM)!只参考以太坊黄皮书(yellow paper )
在第一部分,我们将去构建:

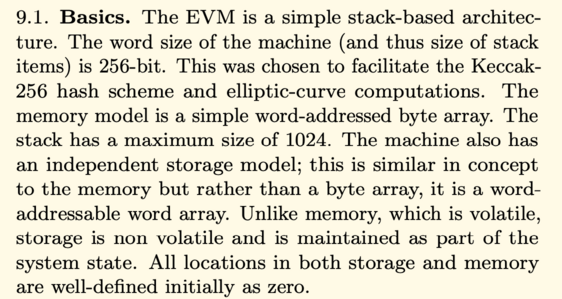

Most of the things we need to get started can be found in Section 9, The Execution Model.
在以太坊黄皮书的第九部分提到了 <mark>执行模型</mark>
首先,我们得有一个256位字并且最大容量为1024的堆栈,就像这样:
stack.py
# 栈类的深度限制为1024个元素
from .constants import MAX_STACK_DEPTH, MAX_UINT256
class Stack:
def __init__(self, max_depth=MAX_STACK_DEPTH) -> None:
self.stack = []
self.max_depth = max_depth
def push(self, item: int) -> None:
if item < 0 or item > MAX_UINT256:
raise InvalidStackItem({"item": item})
if (len(self.stack) + 1) > self.max_depth:
raise StackOverflow()
self.stack.append(item)
def pop(self) -> int:
if len(self.stack) == 0:
raise StackUnderflow()
return self.stack.pop()
def __str__(self) -> str:
return str(self.stack)
def __repr__(self) -> str:
return str(self)
class StackUnderflow(Exception):
...
class StackOverflow(Exception):
...
class InvalidStackItem(Exception):
...
其中constants.py
MAX_UINT256 = 2 ** 256 - 1
MAX_UINT8 = 2 ** 8 - 1
MAX_STACK_DEPTH = 1024
接着我们得有一个临时存储器(memory)
这是现在我所能想到的最简单的例子:memory.py
from .constants import MAX_UINT256, MAX_UINT8
class Memory:
def __init__(self) -> None:
# TODO: use https://docs.python.org/3/library/functions.html#func-bytearray
self.memory = []
def store(self, offset: int, value: int) -> None:
if offset < 0 or offset > MAX_UINT256:
raise InvalidMemoryAccess({"offset": offset, "value": value})
if value < 0 or value > MAX_UINT8:
raise InvalidMemoryValue({"offset": offset, "value": value})
# 在必要时将会拓展 memory存储数组长度
if offset >= len(self.memory):
self.memory.extend([0] * (offset - len(self.memory) + 1))
self.memory[offset] = value
def load(self, offset: int) -> int:
if offset < 0:
raise InvalidMemoryAccess({"offset": offset})
if offset >= len(self.memory):
return 0
return self.memory[offset]
class InvalidMemoryAccess(Exception):
...
class InvalidMemoryValue(Exception):
...
让我们先暂时忽略storage存储,先开始第二部分。

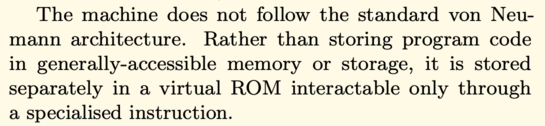

以太坊虚拟机的合约代码不是于数据一起驻留在内存中的,而是另辟一个单独的空间存储。我们将其定义为一个简单的字节对象,可以得到如下ExecutionContext
结构:
context.py
from .memory import Memory
from .stack import Stack
"""
EVM中的合约代码不是与数据一起驻留在内存中,而是驻留在一个单独的区域中。
如果我们将其定义为一个简单的字节对象,我们将得到以下ExecutionContext结构
"""
class ExecutionContext:
def __init__(self, code=bytes(), pc=0, stack=Stack(), memory=Memory()) -> None:
self.code = code
self.stack = stack
self.memory = memory
self.pc = pc
self.stopped = False
self.returndata = bytes()
def stop(self) -> None:
self.stopped = True
def read_code(self, num_bytes) -> int:
"""
:param num_bytes:
:return:Returns the next num_bytes from the code buffer (at index pc) as an integer and advances pc by num_bytes.
"""
value = int.from_bytes(
self.code[self.pc:self.pc + num_bytes], byteorder="big"
)
self.pc += num_bytes
return value
有了代码临时存放的地方,开始定义指令类
opcodes.py/Instruction
class Instruction:
def __init__(self, opcode: int, name: str, arg_length=0):
self.opcode = opcode
self.name = name
self.arg_length = arg_length
def execute(self, context: ExecutionContext) -> None:
raise NotImplementedError
以及它的辅助函数:
INSTRUCTIONS = []
INSTRUCTIONS_BY_OPCODE = {}
def register_instruction(opcode: int, name: str, execute_func: callable):
instruction = Instruction(opcode, name)
instruction.execute = execute_func
INSTRUCTIONS.append(instruction)
assert opcode not in INSTRUCTIONS_BY_OPCODE
INSTRUCTIONS_BY_OPCODE[opcode] = instruction
return instruction
现在我们可以定义一些简单的指令就像下面给出的那样:
ExecutionContext
存放
# 定义命令
STOP = register_instruction(0x00, "STOP", (lambda ctx: ctx.stop()))
# 放入堆栈指令
PUSH1 = register_instruction(
0x60,
"PUSH1",
(lambda ctx: ctx.stack.push(ctx.read_code(1)))
)
# 加法指令
ADD = register_instruction(
0x01,
"ADD",
(lambda ctx: ctx.stack.push((ctx.stack.pop() + ctx.stack.pop()) % 2 ** 256)),
)
# 乘法指令
MUL = register_instruction(
0x02,
"MUL",
(lambda ctx: ctx.stack.push((ctx.stack.pop() * ctx.stack.pop()) % 2 ** 256)),
)
现在,为了运行代码,我们只需要知道如何解码代码中的指令
def decode_opcode(context: ExecutionContext) -> Instruction:
if context.pc < 0 or context.pc >= len(context.code):
raise InvalidCodeOffset({"code": context.code, "pc": context.pc})
opcode = context.read_code(1)
instruction = INSTRUCTIONS_BY_OPCODE.get(opcode)
if instruction is None:
raise UnknownOpcode({"opcode": opcode})
return instruction
并且现在如果我们忽略gas费的消耗,将能够得到最终运行脚本:
runner.py
from .context import ExecutionContext
from .opcodes import decode_opcode
def run(code: bytes)-> None:
"""
:param code:
:return:
"""
context = ExecutionContext(code = code)
while not context.stopped:
pc_before = context.pc
instruction = decode_opcode(context)
instruction.execute(context)
print(f"{instruction} @ pc={pc_before}")
print(context)
print()
print(f"Output: 0x{context.returndata.hex()}")
现在我们用这个例子来演示:
PUSH 0x6
PUSH 0x7
MUL
STOP
即让EVM编译 600660070200
这串字节码,我们可以得到最基本的运行脚本
# 虚拟机的字大小为256位,即一次性处理256位长度的数据
from soul_evm.runner import run
import sys
def main():
if len(sys.argv) != 2:
print("Usage: {} <hexdata>".format(sys.argv[0]))
sys.exit(1)
data = sys.argv[1]
run(bytes.fromhex(data))
if __name__ == "__main__":
main()

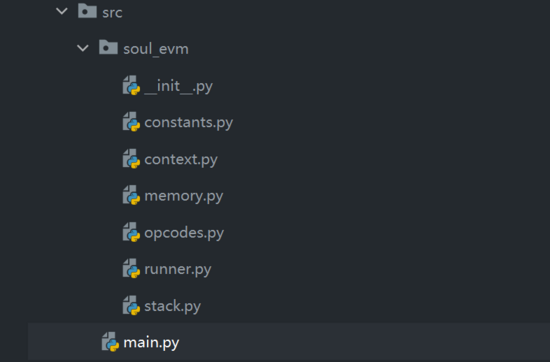

这是我项目的路径:
现在让我们运行它,并得到如下输出:
PS E:evmproject\src> python main.py 600660070200
PUSH1 @ pc=0
stack: [6]
memory:[]
PUSH1 @ pc=2
stack: [6, 7]
memory:[]
MUL @ pc=4
stack: [42]
memory:[]
STOP @ pc=5
stack: [42]
memory:[]
Output: 0x
假如我们将00STOP
指令去掉,编译6006600702
这串字节码,看看会得到什么:
PS E:evmproject\src> python main.py 6006600702
PUSH1 @ pc=0
stack: [6]
memory:[]
PUSH1 @ pc=2
stack: [6, 7]
memory:[]
MUL @ pc=4
stack: [42]
memory:[]
Traceback (most recent call last):
soul_evm.opcodes.InvalidCodeOffset: {'code': b'`\x06`\x07\x02', 'pc': 5}
将会报InvalidCodeOffset
的错误。
当我试图在字节指令的末尾处获取下一条指令时,遇到了一个错误。

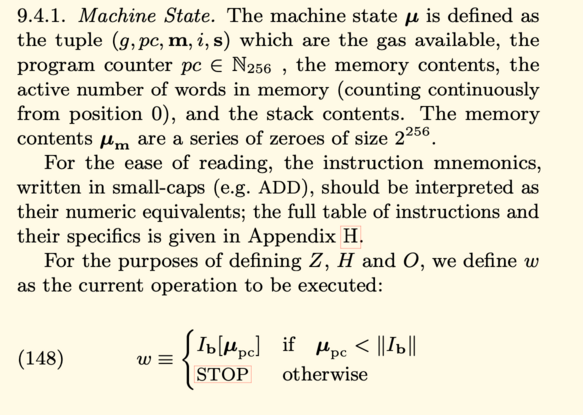

让我们来看看关于这个场景下,黄皮书说了什么?
大致概括一下:如果程序计数器在代码字节数组之外,那么将会干净利落地停止,而不是抛出异常,所以我们需要改变解码器中的条件:
opcodes.py/decode_opcode
def decode_opcode(context: ExecutionContext) -> Instruction:
if context.pc < 0:
raise InvalidCodeOffset({"code": context.code.hex(), "pc": context.pc})
if context.pc >= len(context.code):
return STOP
#通过bytes获取指令
opcode = context.read_code(1)
instruction = INSTRUCTIONS_BY_OPCODE.get(opcode)
if instruction is None:
raise UnknownOpcode({"opcode": opcode})
return instruction
如此一来,便不会报错了!
PS E:evmproject\src> python main.py 6006600702
PUSH1 @ pc=0
stack: [6]
memory:[]
PUSH1 @ pc=2
stack: [6, 7]
memory:[]
MUL @ pc=4
stack: [42]
memory:[]
STOP @ pc=5
stack: [42]
memory:[]
Output: 0x
到目前为止,我们一直在监视跟踪运行中的堆栈,但在实际应用中,以太坊虚拟机必须返回值才算有用。

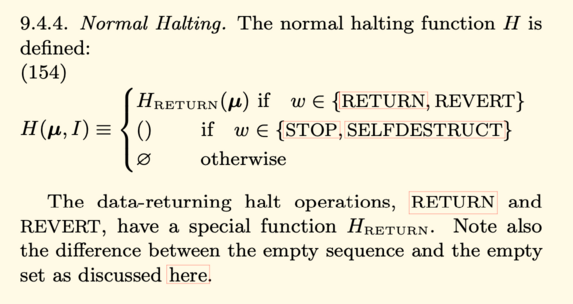

根据黄皮书,返回值意味着什么?
返回从堆栈中弹出的两个元素,offset
和length
以及返回的memory[offset:offset+length-1]
所以为了返回数据,我们需要实现内存存储指令和RETURN
。让我们从MSTORE8
开始,它能够从堆栈中弹出一个偏移量和一个字,并将该字的最低字节存储在内存中:
MSTORE8 = register_instruction(
0x53,
"MSTORE8",
(lambda ctx: ctx.memory.store(ctx.stack.pop(), ctx.stack.pop() % 256)),
)
为了RETURN
,我们添加一个load_range(offset,length)
来操作临时存储:
def load_range(self, offset: int, length: int) -> bytes:
if offset < 0:
raise InvalidMemoryAccess({"offset": offset, "length": length})
# we could use a slice here, but this lets us gets 0 bytes if we read past the end of concrete memory
return bytes(self.load(x) for x in range(offset, offset + length))
note:添加在Memory
类中
然后我们就可以给我们的ExcutionContext
加上获取返回数据的属性函数:
class ExecutionContext:
def __init__(self, code=bytes(), pc=0, stack=Stack(), memory=Memory()) -> None:
...
self.returndata = bytes()
def set_return_data(self, offset: int, length: int) -> None:
self.stopped = True
self.returndata = self.memory.load_range(offset, length)
现在给出RETURN
的指令:
RETURN = register_instruction(
0xf3,
"RETURN",
(lambda ctx: ctx.set_return_data(ctx.stack.pop(), ctx.stack.pop())),
)
现在我们就可以返回并且输出运行之后的结果啦!
PS E:evmproject\src> python main.py 600660070260005360016000f3
PUSH1 @ pc=0
stack: [6]
memory:[]
PUSH1 @ pc=2
stack: [6, 7]
memory:[]
MUL @ pc=4
stack: [42]
memory:[]
PUSH1 @ pc=8
stack: [1]
memory:[42]
PUSH1 @ pc=10
stack: [1, 0]
memory:[42]
RETURN @ pc=12
stack: []
memory:[42]
Output: 0x2a
